Item specifics

Host speed (rev/min)
200-1400 rpm adjustable
Applicable wire diameter
Ф3mm-25mm
air pressure
0.4mPa
Power
200W 220v/50Hz
Weight
27 kg
size
430*380*260mm
Tape outer diameter
up to 110mm

Review

Description

Description

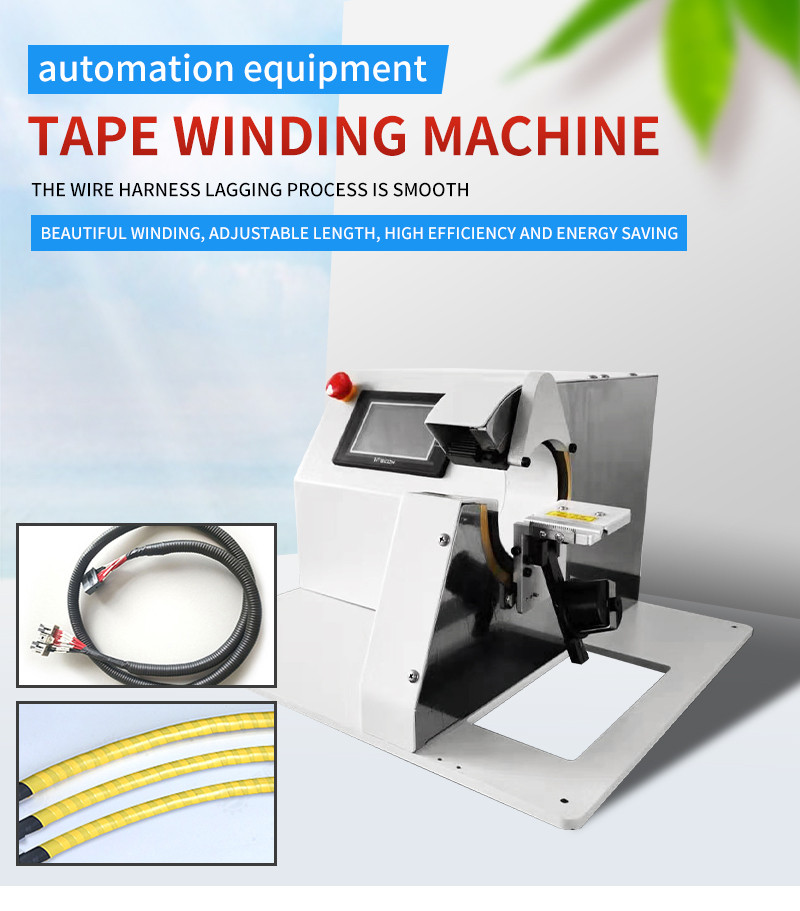

Wire tape winding machine

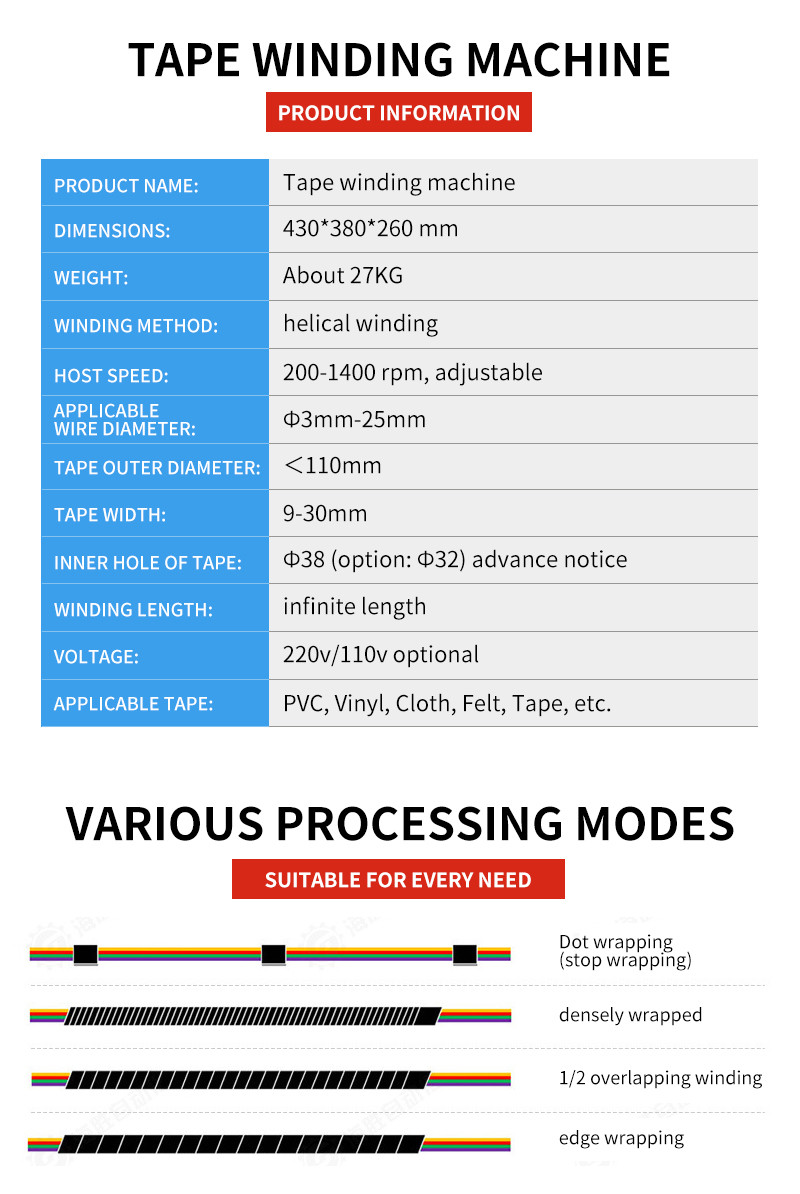

Machine Name: Tape Winding Machine

Machine model: 303T

Length, width and height: 430*380*260mm

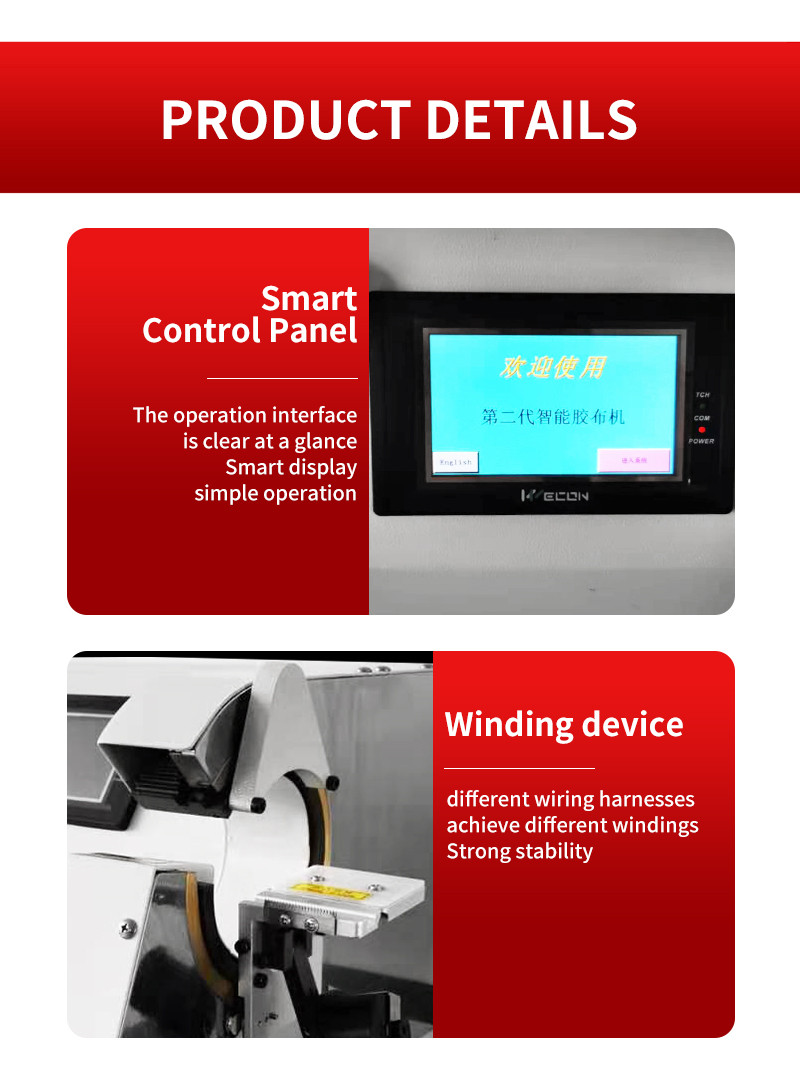

Operation mode: touch screen

Winding method: spiral winding

Applicable wire diameter: Ф3mm-25mm

Host speed (rev/min): 200-1400 rpm adjustable

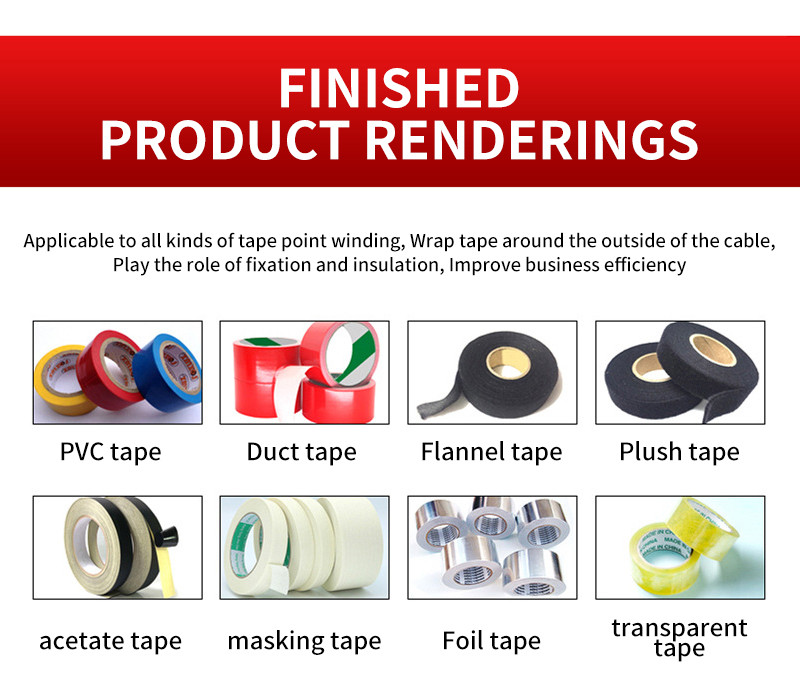

Applicable tape: PVC, vinyl, cloth, felt, tape, etc.

Tape outer diameter: up to 110mm

Tape width: 9-30mm

Tape inner hole size: Ф38 (option: Ф32) inform in advance

Winding length: unlimited

Voltage: 220v/110v optional

Net weight: 27KG

Machine function:

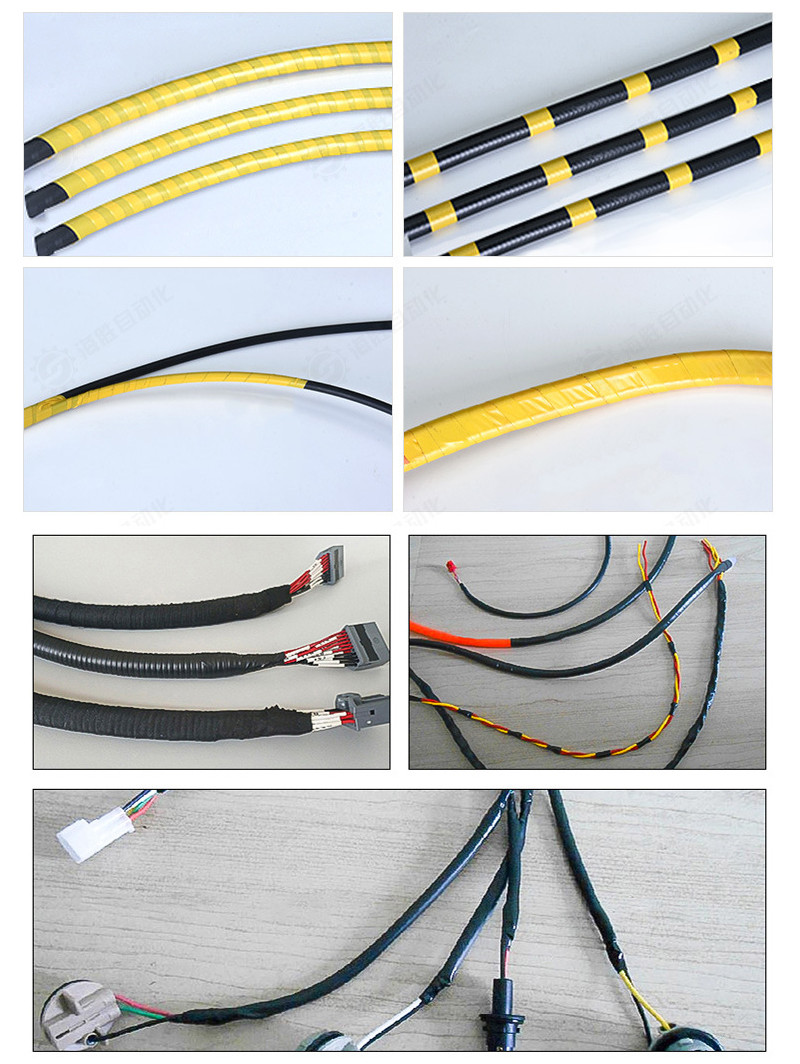

Full wrapping: the tape wraps the entire wire harness overlappingly, and the overlapping wrapping area of ​​the tape is manually adjusted

Point wrapping: tape wraps a point of the wire harness according to the number of turns, and the number of winding turns can be set to one turn, two turns or more.
