303X Wire Tape Winding Machine
Item specifics
- Host speed (rev/min)
- 4500 rpm adjustable
- Applicable wire max diameter
- Ф40mm
- air pressure
- 0.4mPa
- Power
- 200W 220v/50Hz
- Weight
- 45 kg
- size
- 56*50*35cm
Review
Description

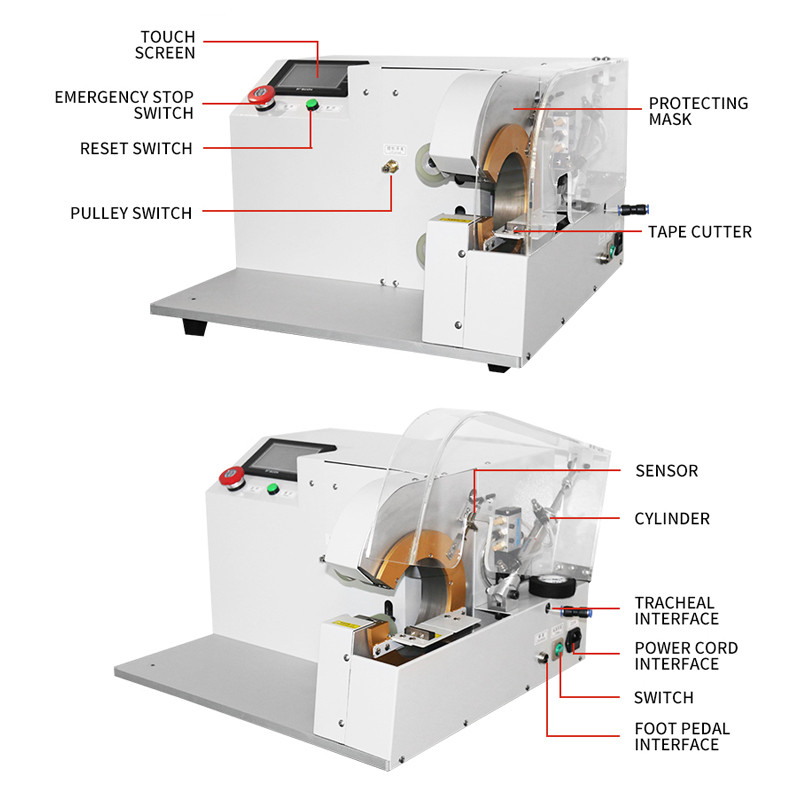

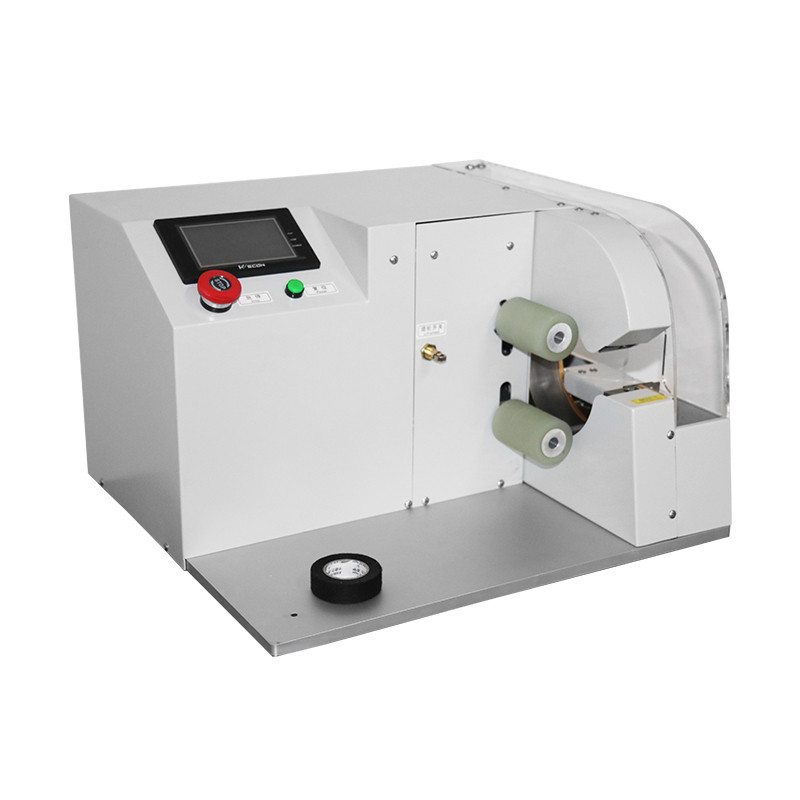

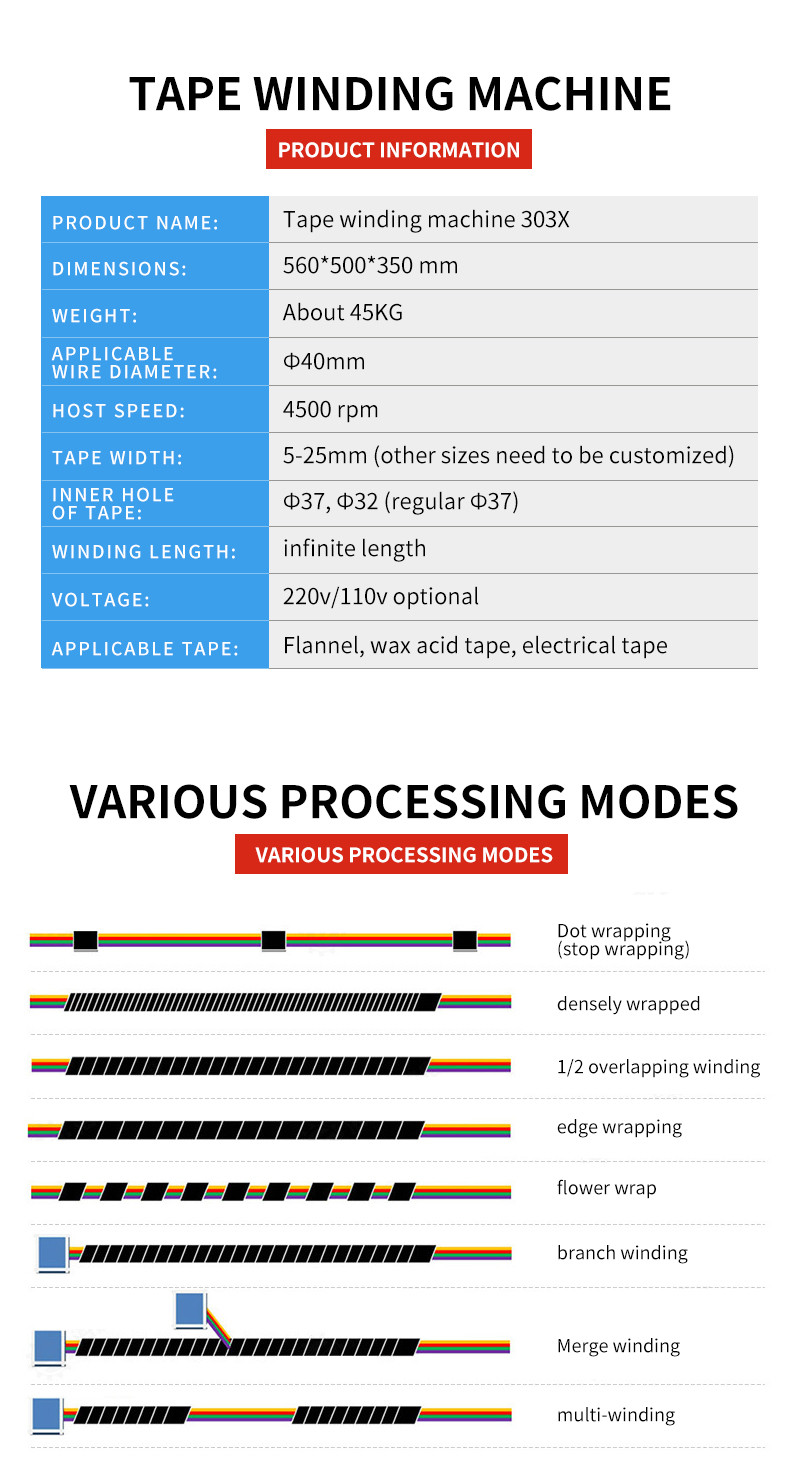

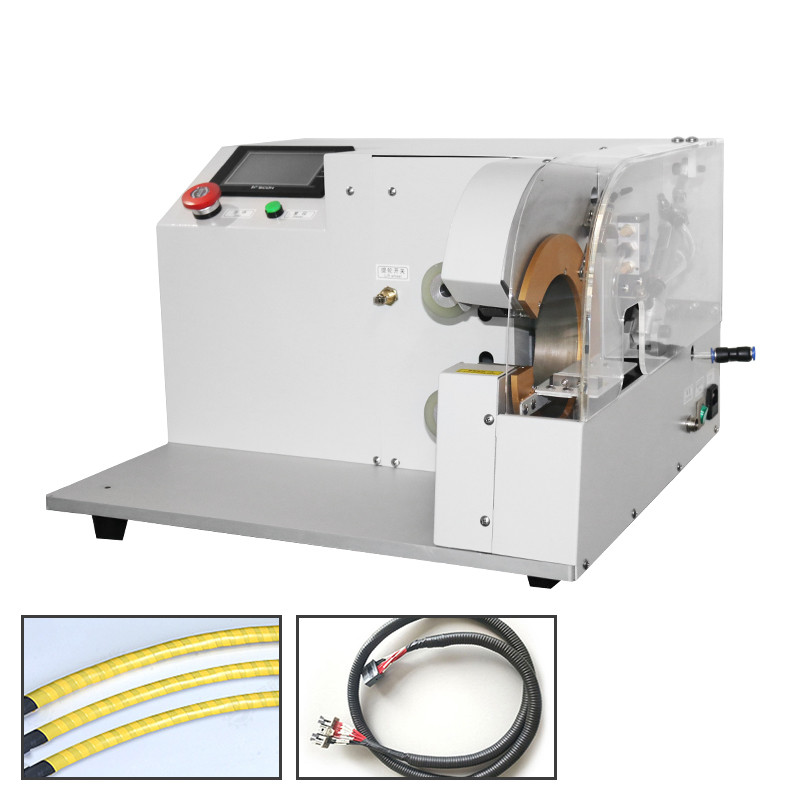

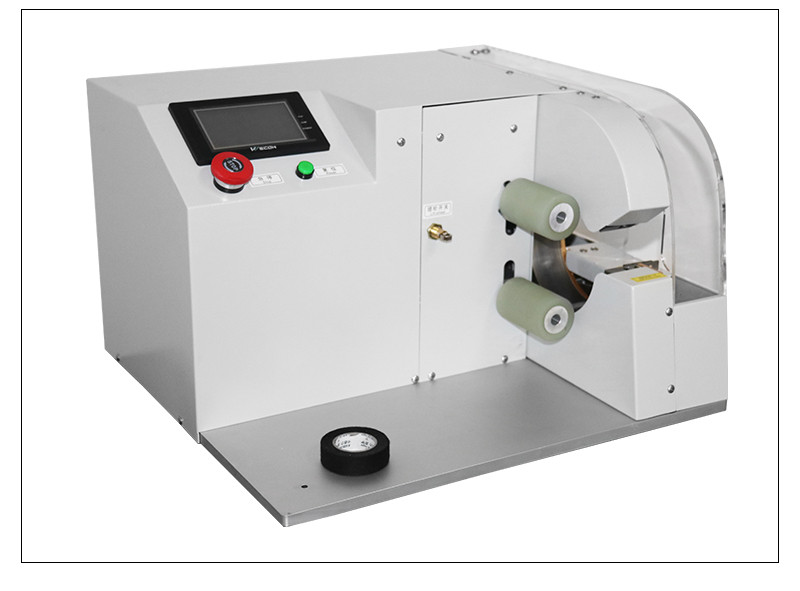

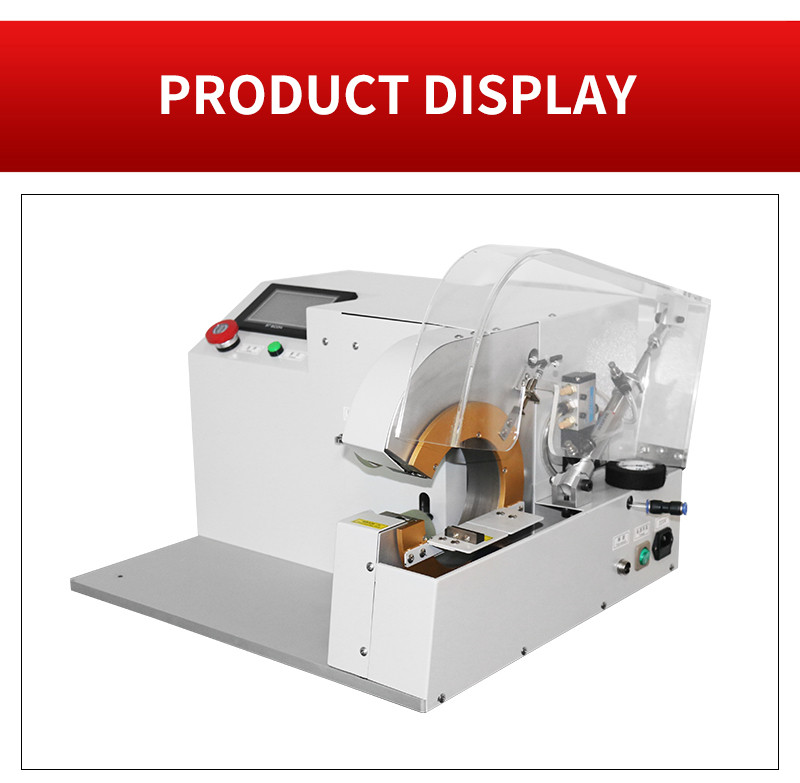

Machine Name: Tape Winding Machine
Machine model: 303X
Length, width and height: 56*50*35cm
Applicable maximum wire diameter: Ф40mm
Host speed (rev/min): 4500
Applicable tape: velvet cloth, wax tape, electrical tape
Tape width: 5-25 (other sizes can be customized)
Tape inner hole size: Ф37, Ф32 are usually equipped with Ф37. other sizes please
Informed in advance
Winding length: unlimited
Voltage: 220v/110v
Weight: 45KG

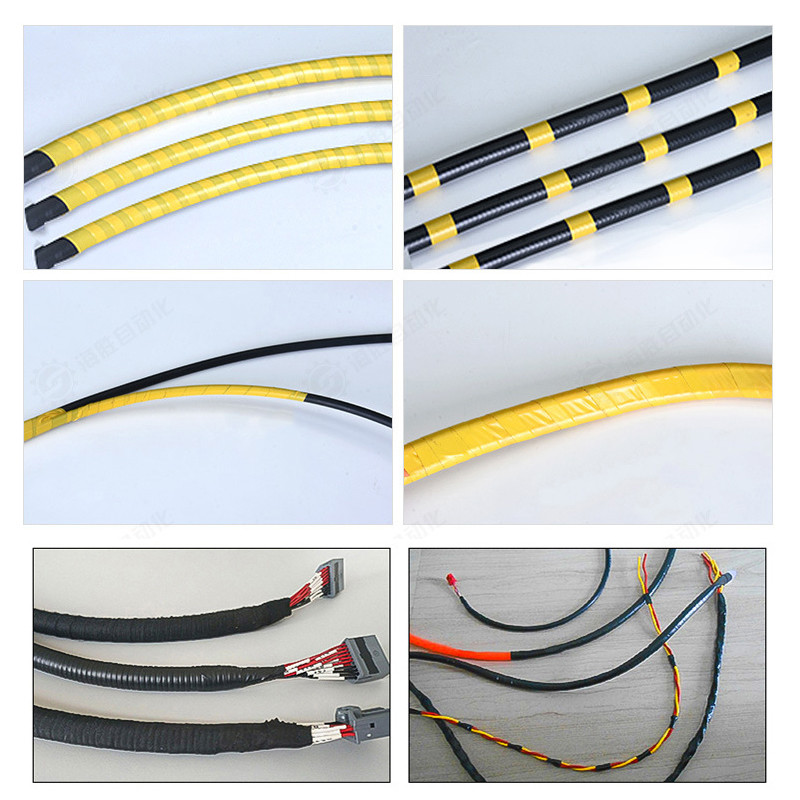

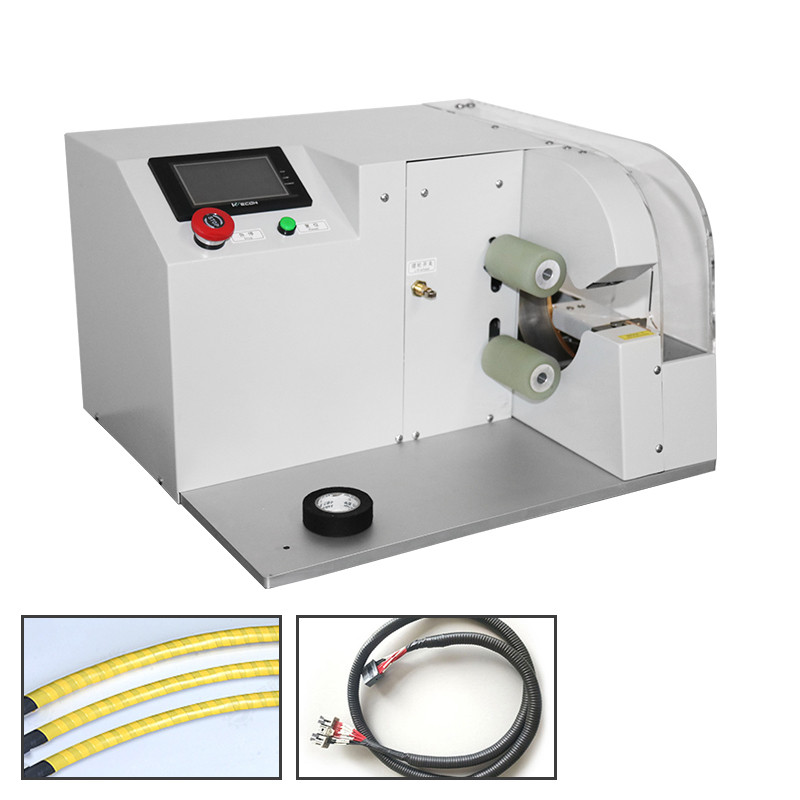

Machine function:
Full winding: the tape overlaps and wraps the entire wire harness, and the overlapping area of the tape is adjustable, for example, the tape overlaps by one-half, one-third, or one-fourth.
Spot wrapping: the tape wraps a point of the wire harness according to the number of turns, and the number of winding turns can be set to one turn, two turns or more.
Flower wrapping: When the tape wraps the wire harness, it does not overlap and is separated by a certain distance, and the interval distance is adjustable.
