Item specifics

Host speed (rev/min)
4500 rpm adjustable
Applicable wire max diameter
Ф40mm
air pressure
0.4mPa
Power
200W 220v/50Hz
Weight
55 kg
size
56*54*39cm

Review

Description

Description
Wire tape winding machine

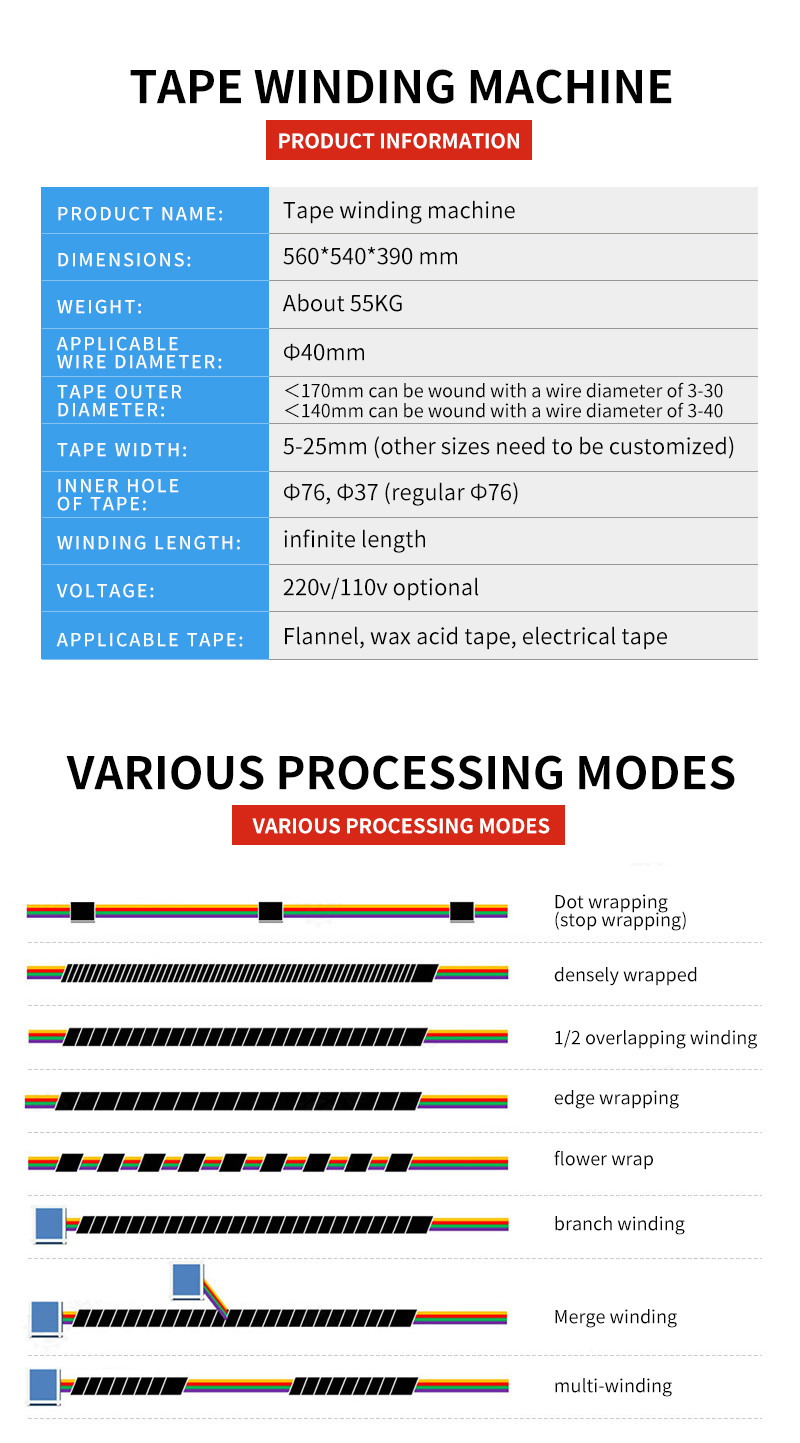

Machine Name: Tape Winding Machine

Machine model: 303XH

Length, width and height: 56*54*39cm

Applicable maximum wire diameter: Ф40mm

Applicable tape: velvet cloth, wax tape, electrical tape

Tape diameter: less than 170mm can be wound 3-30 wire diameter, less than 140 can be wound 3-40 wire diameter

Tape width: 5-25 (other sizes need to be customized)

Tape inner hole size: Ф76, Ф37 are usually equipped with Ф76. Other sizes please inform in advance

Winding length: unlimited

Voltage: 220v/110v

Weight: 55KG

Machine function:

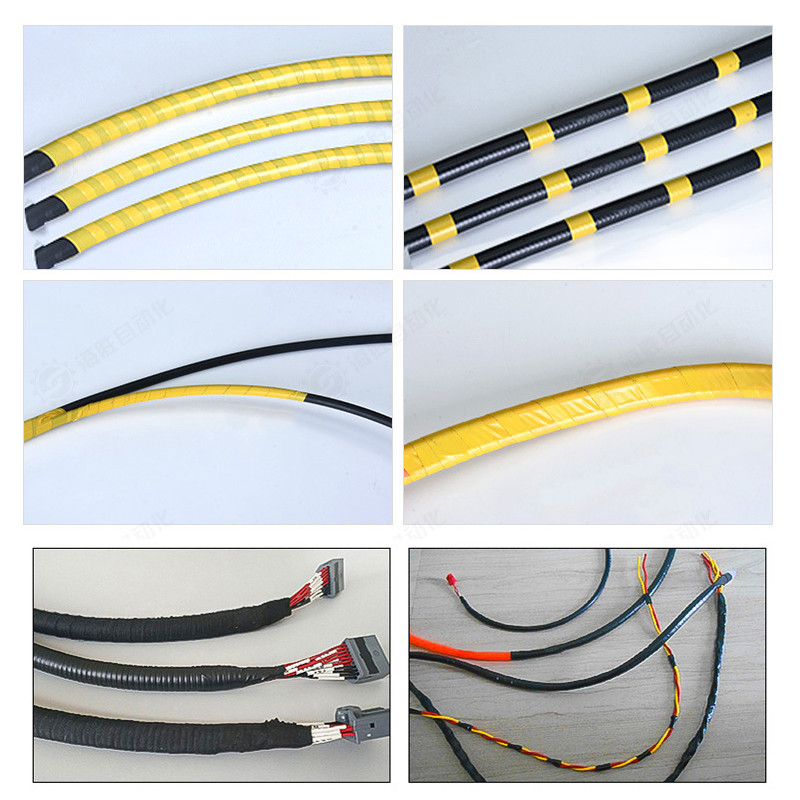

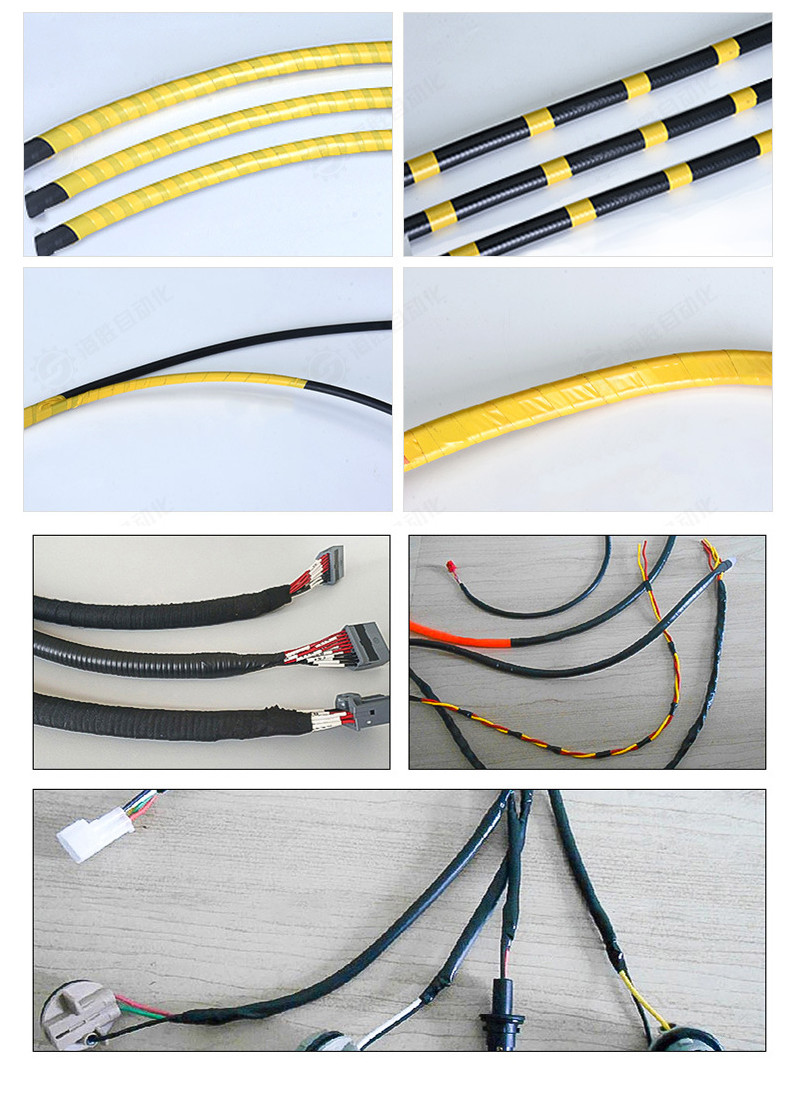

Full winding: the tape overlaps and wraps the entire wire harness, and the overlapping area of ​​the tape is adjustable, for example, the tape overlaps by one-half, one-third, or one-fourth.

Spot wrapping: the tape wraps a point of the wire harness according to the number of turns, and the number of winding turns can be set to one turn, two turns or more.

Flower wrapping: When the tape wraps the wire harness, it does not overlap and is separated by a certain distance, and the interval distance is adjustable.
